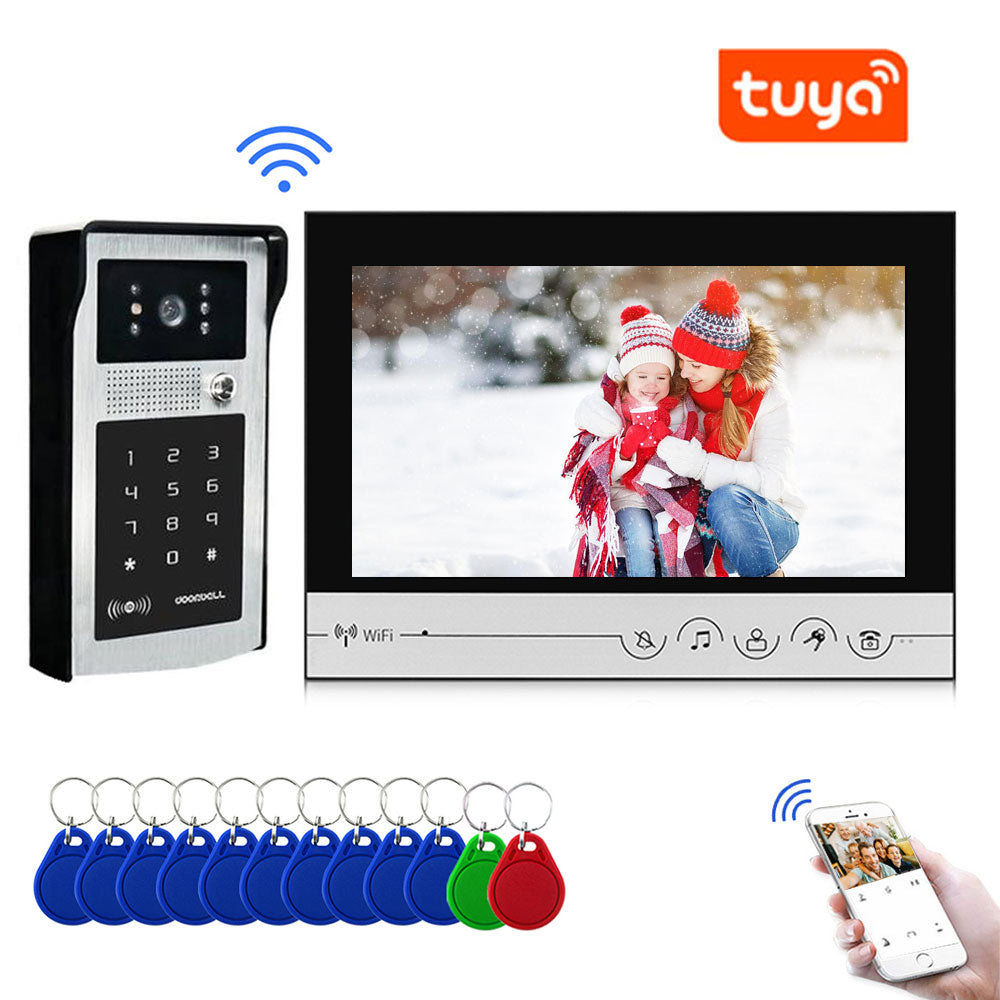

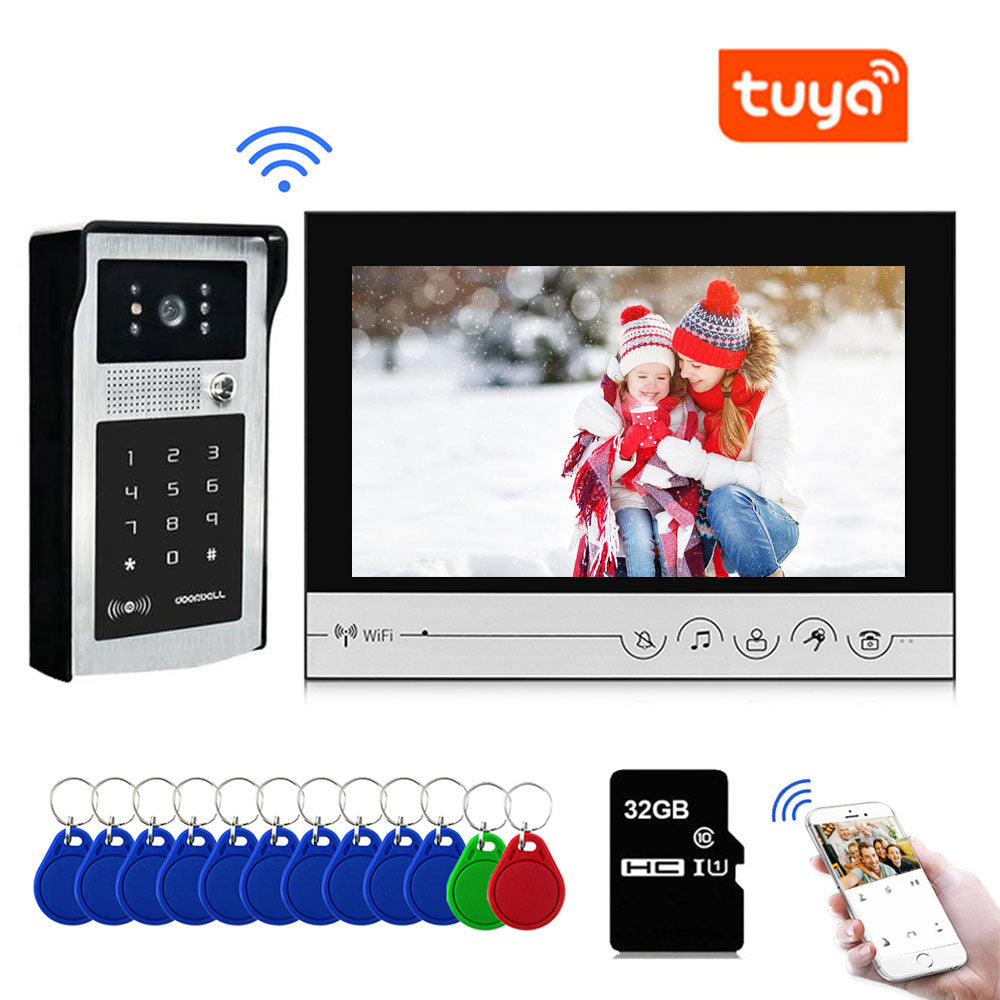

9 inch WIFI Video Doorbell Tuya Waterproof Outdoor Door bell Intercom System Smart Home Door Phone Camera With ID Card Key Password
Tuya Video Doorbell WiFi Waterproof Outdoor Door bell Intercom System
Smart Home Door Phone Camera With ID Card Key Password
By connecting the wireless router at home, you can realize the monitoring between the handheld end( the handheld end includes Smartphone, Android tablets) and the doorbell Two-way intercom, photo recording, etc.
When the visitor presses the doorbell, when the doorbell call button is triggered, the display will also trigger to start and send real-time video and call requests to the handheld.
After the user connects, he can immediately check who the vistors is. And can decide whether to talk with him, take pictures and videos. The device supports Android and IOS operating systems.
supports 4 mobile APP users at the same time, allowing you and your family member to see the outdoor situation at any time.
WIFI 9" Screen HD LCD Tuya Smart Life APP Video Door Phone Intercom System Support IR RFID Code Keypad Camera
PASSWORD Code keypad: Support
9 ”Video Door Phone System Support One-Key Unlocking
This is a video intercom for home with wifi function that supports working with mobile phones,when visitor press the doorbell,your phone will receive the APP notification,it means you can use app to open the door,talk with visitor ,watch video and so on,when visitor press the doorbell,your phone will receive the APP notification
Handsfree Dual-way Intercom
-Communication between indoor monitor and outdoor camera is supported. Let you know easily what the visitor is talking about.
-Support WIFI
Unlock anywhere via Phone app
With This Function, You Just Need To Press The Unlock Button On Monitor (or app). Lock And Unlock. So, It Makes Your Home More Safety.

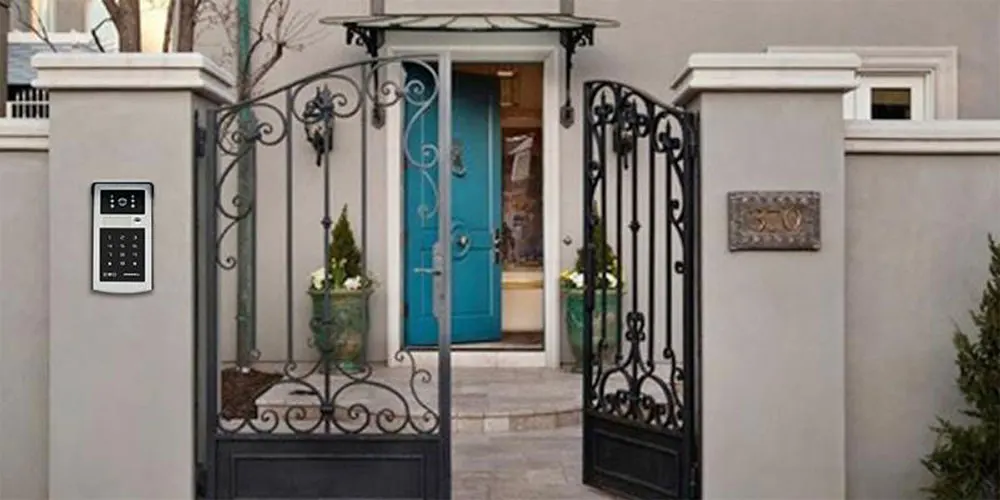

Villa Intercom System
The intercom system support talk between monitor and doorbell or monitor and phone.

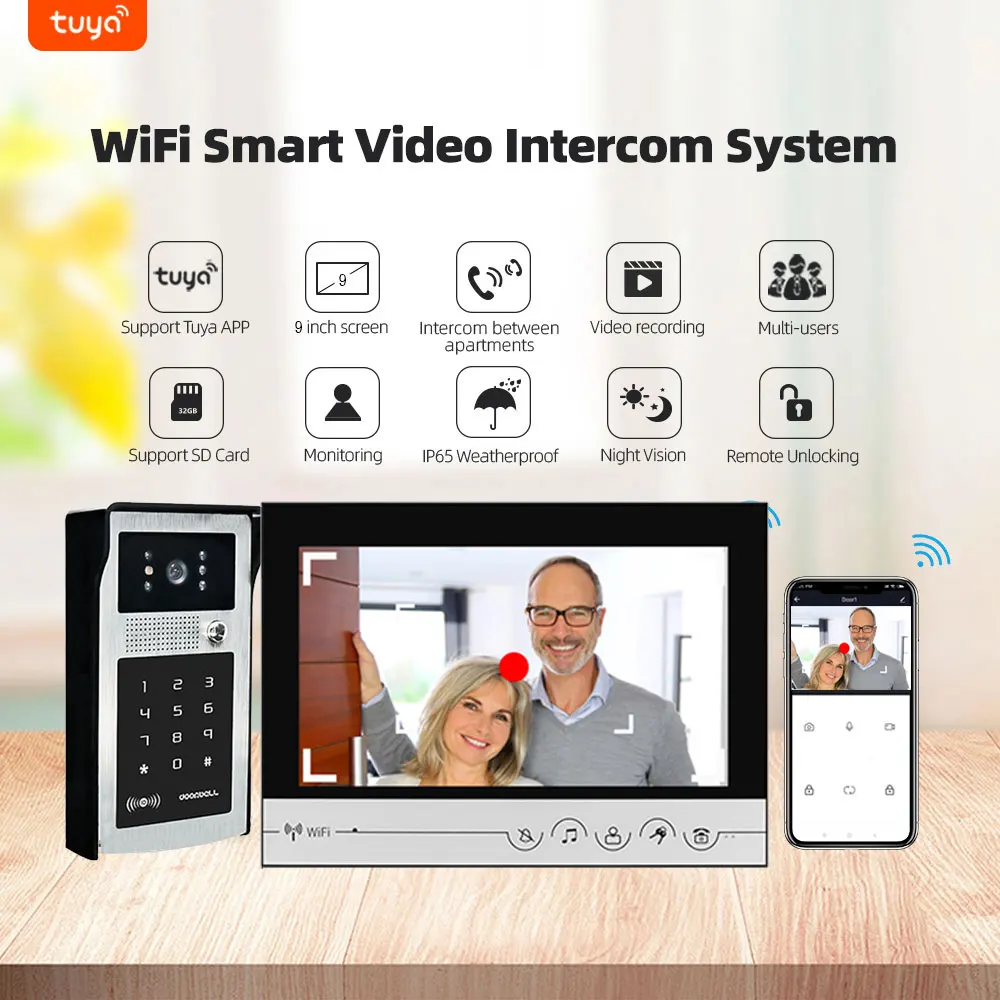

Smart wifi video intercom system:
With the latest wifi technology, your phone will receive the APP notification, you can see,hear and speak to anyone at your door, even remote unlock via your smartphone in everywhere.

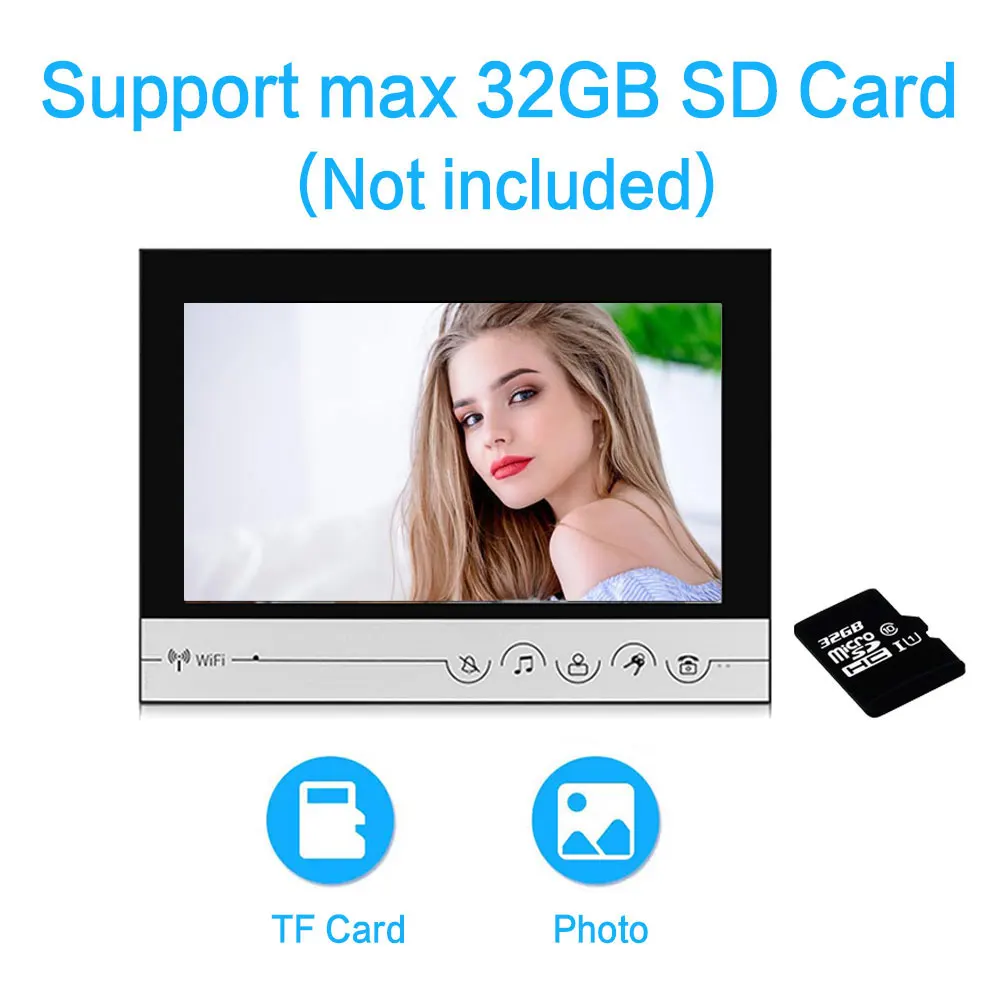

TF Card /Record
When visitor press the doorbell or triggered motion detection, the camera will automatically snapshot or record and save in a additional Micro SD card.
Answer The Door In Your Hands
Get alerts on your phone when visitor press the doorbell, you can see,hear and speak to anyone at your door.
Automatic Recording
When visitors press the doorbell or motion detect is triggered, doorbell camera will automatically record videos or snapshot pictures and save them in the extra Micro SD card to protect your home everyday. (SD card needs to be purchased separately)

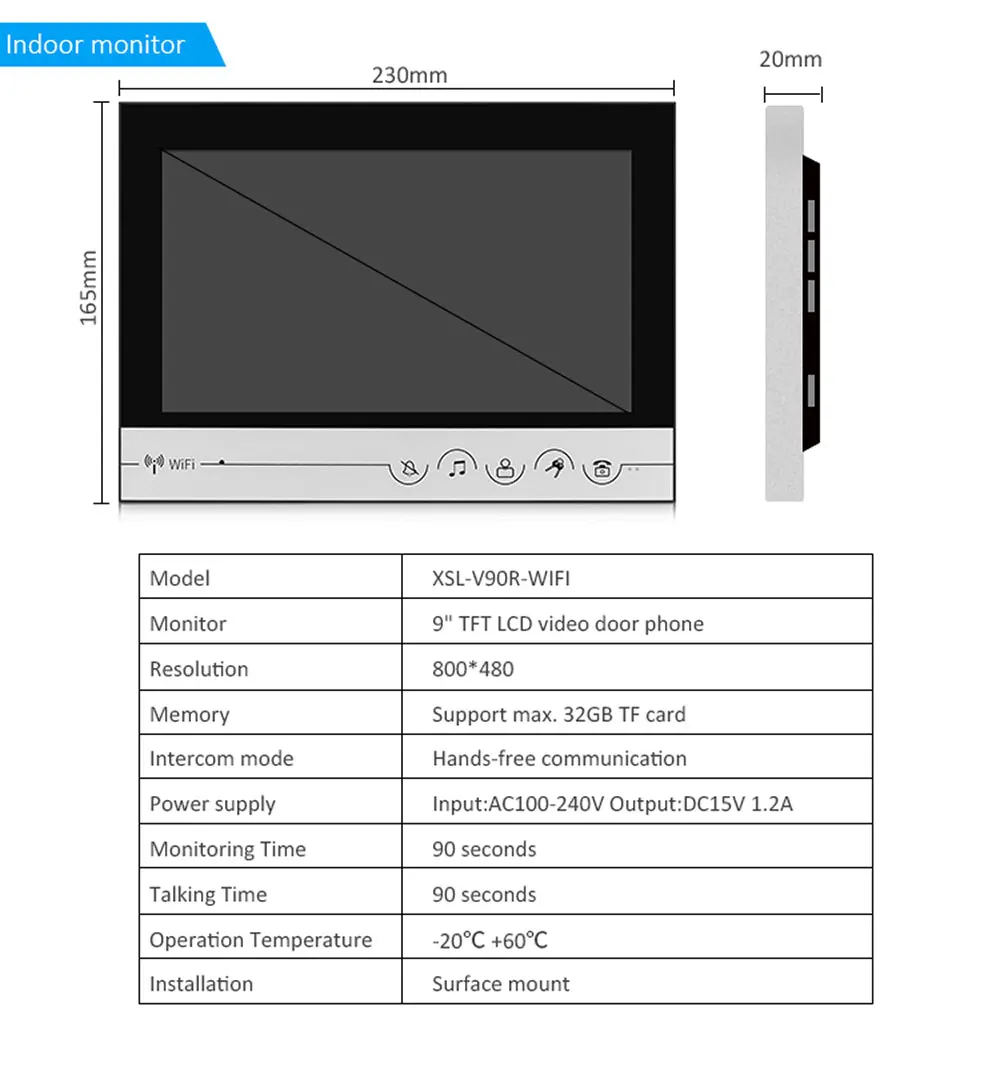

Indoor Monitor:
9 Inch, Monitoring, Visual Intercom , Remote Unlock, Support Max. 64GB SD Card
Size: 230*165*20mm
Do not disturb Function
The display image in themonitor is very clear for viewing, which will definitly meet the general use.
Dsplay: 9 inch TFT LCD(16:9display)
Resolution: 800x480
Charger:adapter input voltage: AC100-240V 50Hz-60Hz
Adapter outup voltage current: DC15V 1500mA
Case: Plastic
Installation: Surface mounting

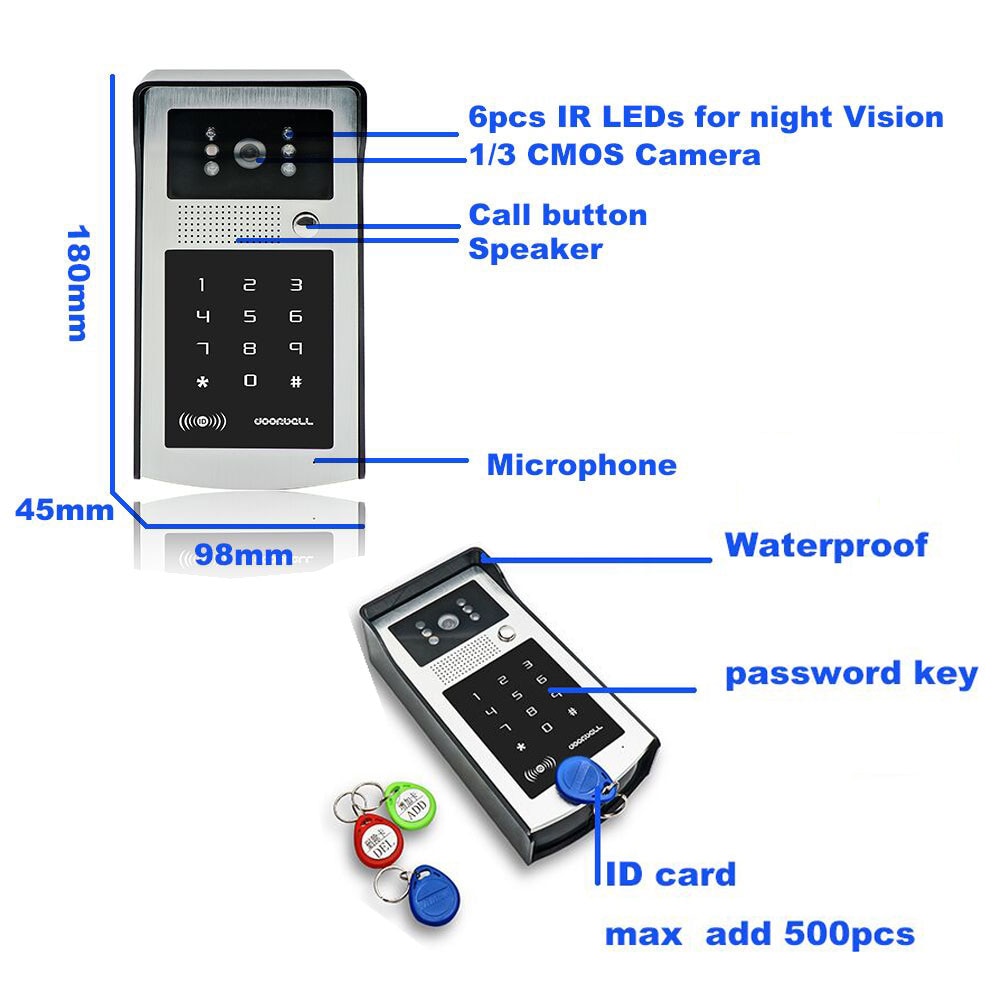

Outdoor Doorbell:
Product Introduce
PASSWORD Code keypad: Support

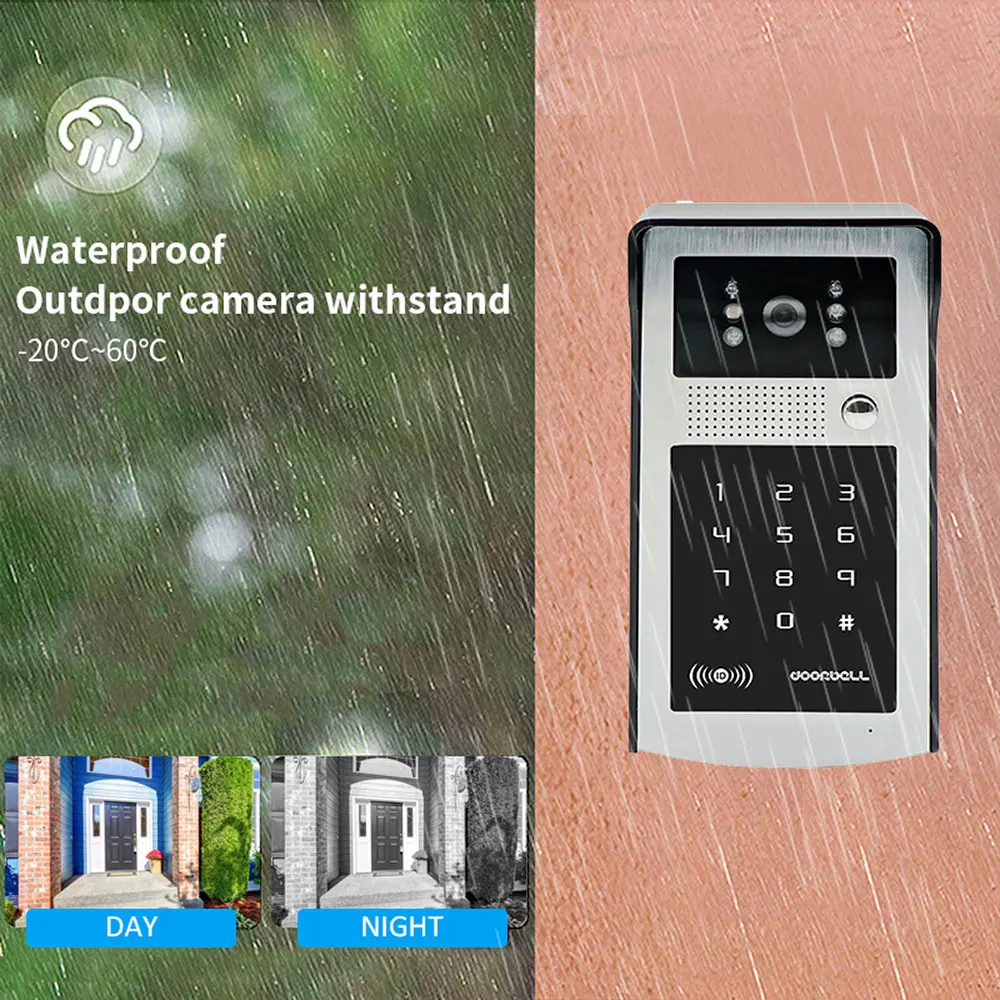

Support Waterproof,
The view angle is 90 degree
It Also Can Works Well Even In Bad Weather.
This is a 700 TVL video doorbell intercome kit. It built-in led lights enhance the night view, the rainproof cover provide a good protection for it. The RFID outdoor unit supports maximum 500 pieces rfid keys. It comes with 2 management cards to add / delete keys. The frequency of RFID reader is 125KHZ.
Outdoor unit equips with 700TVL Camera, cast-iron aluminum alloy panel and rainproof cover. Indoor monitor has 7" LCD Color Screen and white color looks more fashionable.
Power Supply
There is one external power supply (15V2A) in the box for the indoor monitor for base installation.If you don’t want to use the external power you can extend the electric wire to your DIN rail power supply or home power center.
About Wireless Connetion:
Wifi video intercom system does not mean you don’t need wire any cable.The monitor support WIFI network(only connect with 2.4GHZ router band), but the indoor monitor and doorbell is Wired.
About the extension wire:
The extension wires is not included in the box, there are the 4 Wire Cable connectors for you connect the extension wires.You can use 4 Wire Cable wires to extend the monitor to doorbell, monitor to monitor according to your need, maximum distance can exceed 80m.

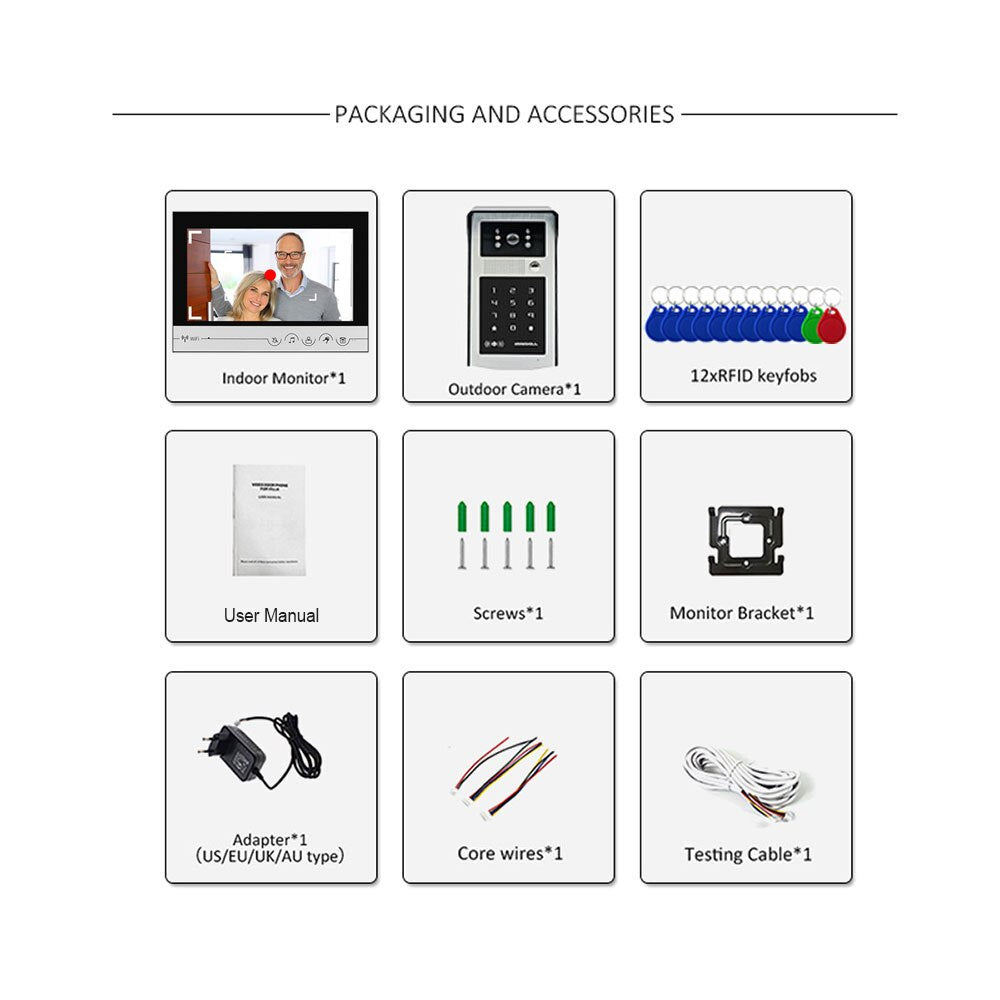

The Package included
About RFID Keys
You can open the door with the RFID key card from outside. This camera support 500 user cards. We will program the RFID for you before ship, and if you want to add or delete keys, you can do like below picture show:

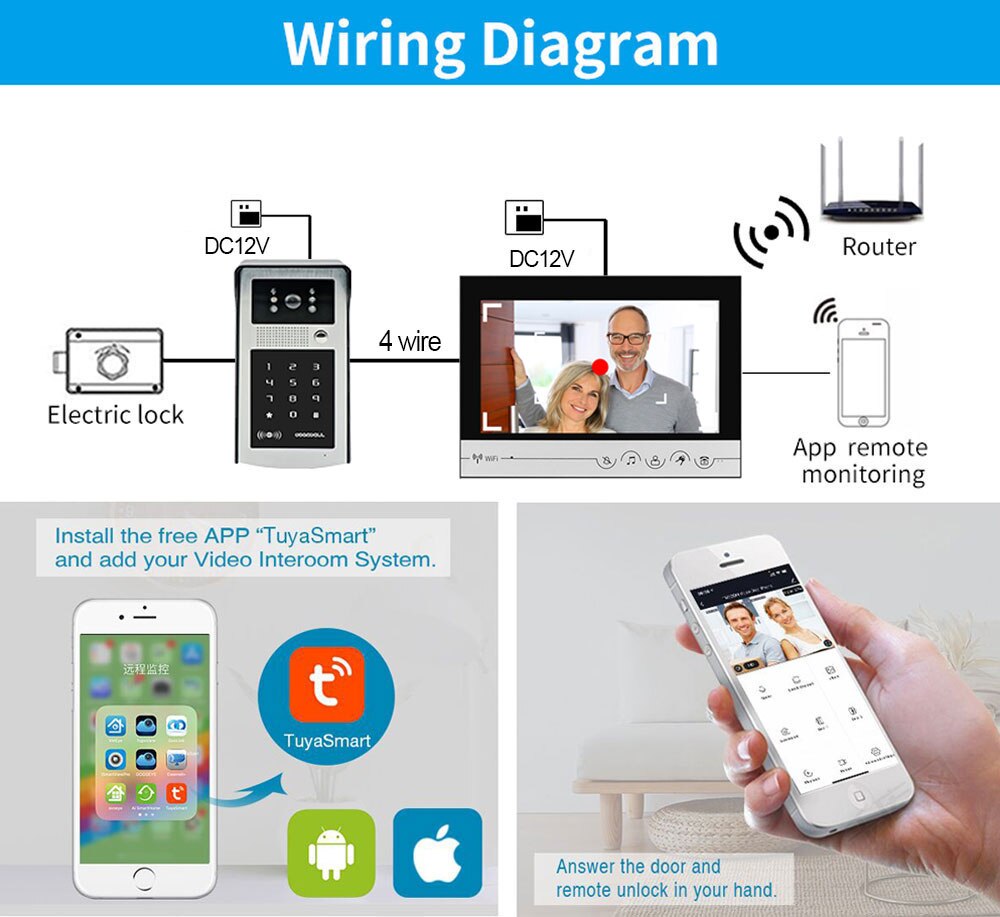

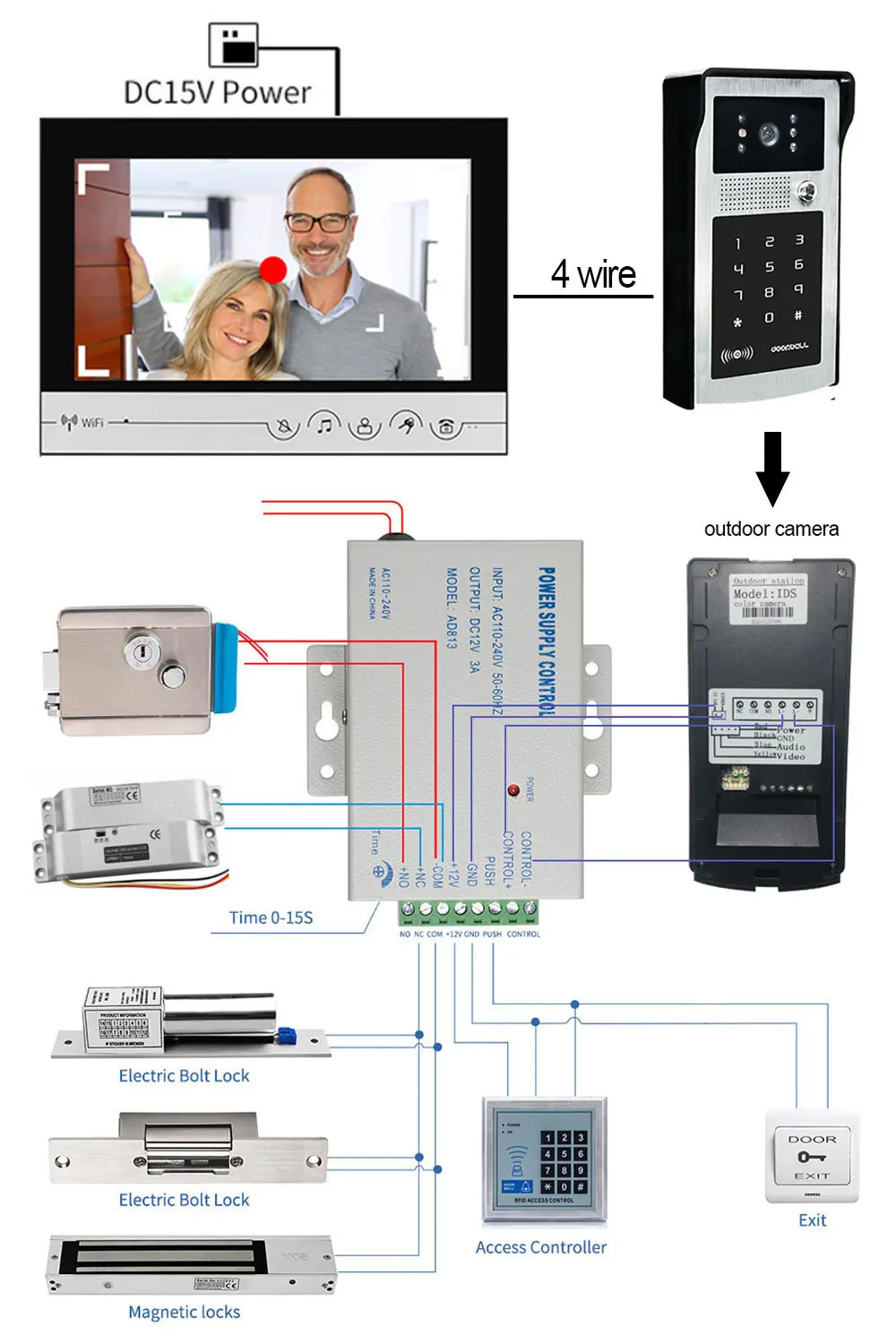

Wiring Instruction
It is a 4-wire system, we will provide 4 core connectors in the package, you need use 4 core cable to do the connection. Please refer to below wiring.(Please note the e-lock / Power Supply BOX at below photo is not included, if you need, please feel free to contact us)
