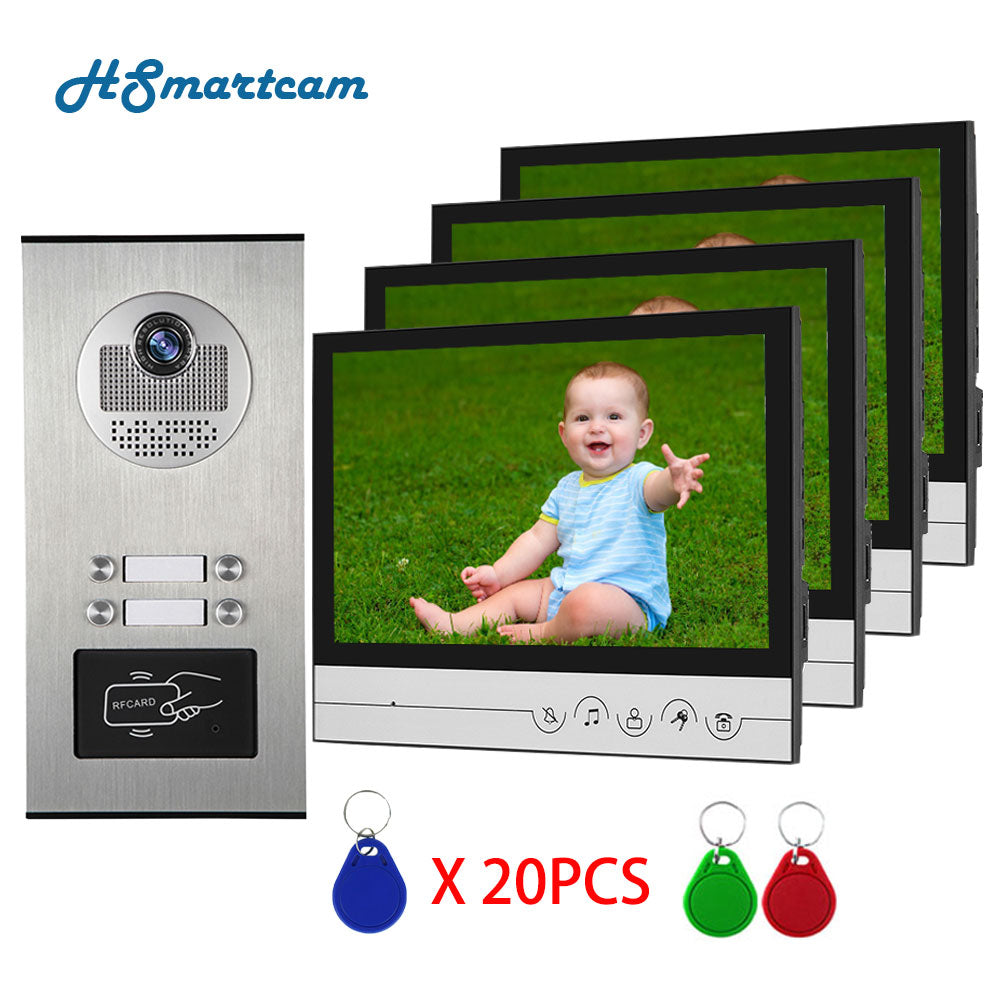

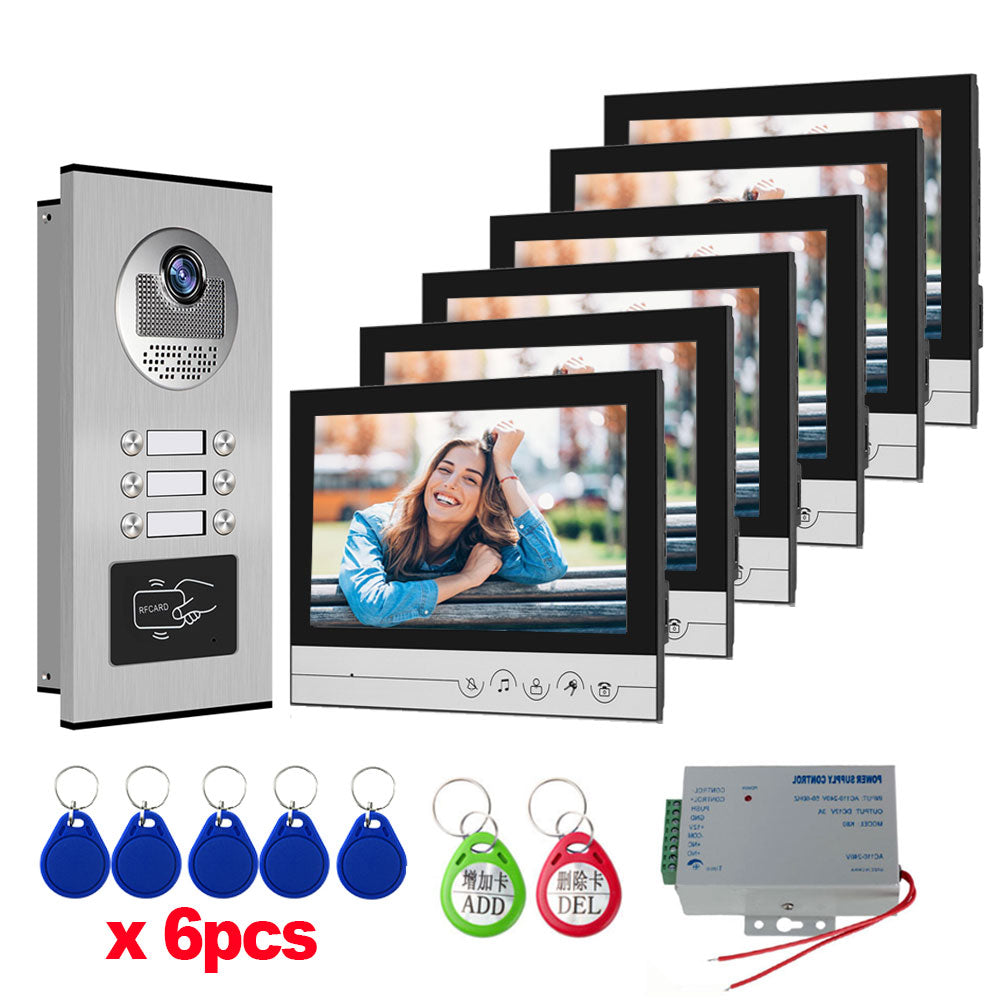

9 inch 4/6 Apartment/Family Color Video Door Phone Intercom System With for 6 Unit Building Intercom Inductive Card

Video intercom 4-wire color Video Door Phone Video intercom System for 3-apartments

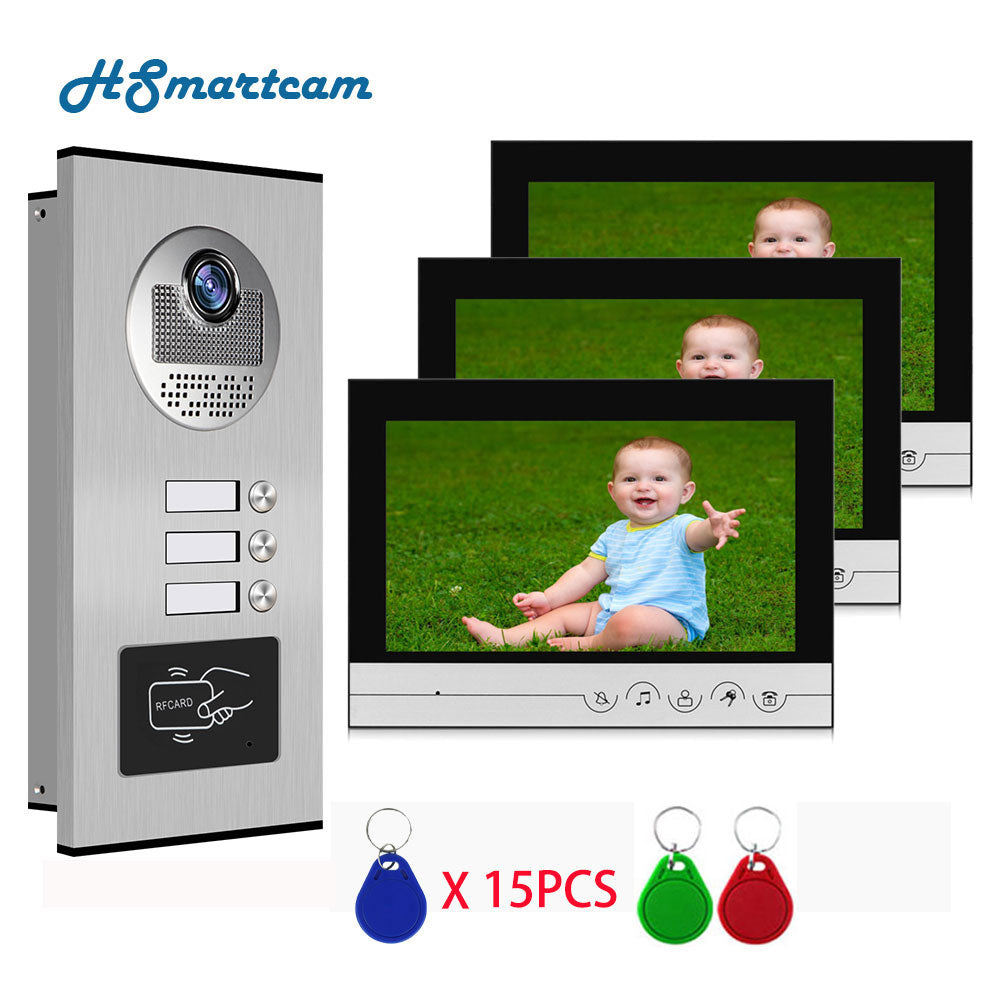

For 3-apartments Building Video intercom System

9 inch Video Door Phone Intercom System RFID Access Doorbell Camera

For 3-apartments Building Video intercom System

Product Specifications

>>>Technical parameter:

Indoor Monitor:

Display: 9inch TFT LCD screen (16:9 dispaly).

Resolution: 800 X 480.

Input: AC 100-240V 50Hz-60Hz.

Output: DC 15V/1500mA.

Case: ABS Engineering Plastics.

Installation:Surface mounting.

9 inch Wifi video intercom system

>>>Introduction

7 Inch LCD press key screen,door answering, monitoring and unlock, dual-way intercom Mute door intercom with door dell kits.

16 different kinds of door bells chimes.Volume, brightness and contrast are adjustable. Fashion and nice design,which can also be used a decoration of your house for home improvement.

700TVL CMOS IR night vision high resolution door monitor camera, easy to install,wired connection stability for home security systems.

Can be used in apartments, villas, hotels, offices, public buildings.Max Support video intercom 12 monitors of security & surveillance equipment

When someone press the call button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside,  Then you can press the response button on monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion.

This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door.

Feature:

The TFT 7 inch digital color LCD screen for monitoring.

High-resolution night vision, monitoring, calling, speaking, unlocking, remote controlling.

Hand-free intercom munication.

Brightness, Chroma, and Volume adjustable.

16-chord melody ring for option.

>>>Technical parameter:

Indoor Monitor:

Display: 7 inch TFT LCD screen (16:9 dispaly).

Resolution: 800 X 480.

Input: AC 100-240V 50Hz-60Hz.

Output: DC 15V/1500mA.

Case: ABS Engineering Plastics.

Installation:Surface mounting.

Dimension: Dimensions: 24 x 15 x 2.6cm (L x W x H).

4.One key to unlock

There are several ways to open the door lock when you are outside the door: using the RFID keyfobs or the remote control set. This item comes with 10 RFID keyfobs(including added keyfob and deleted keyfob). Besides, if you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.

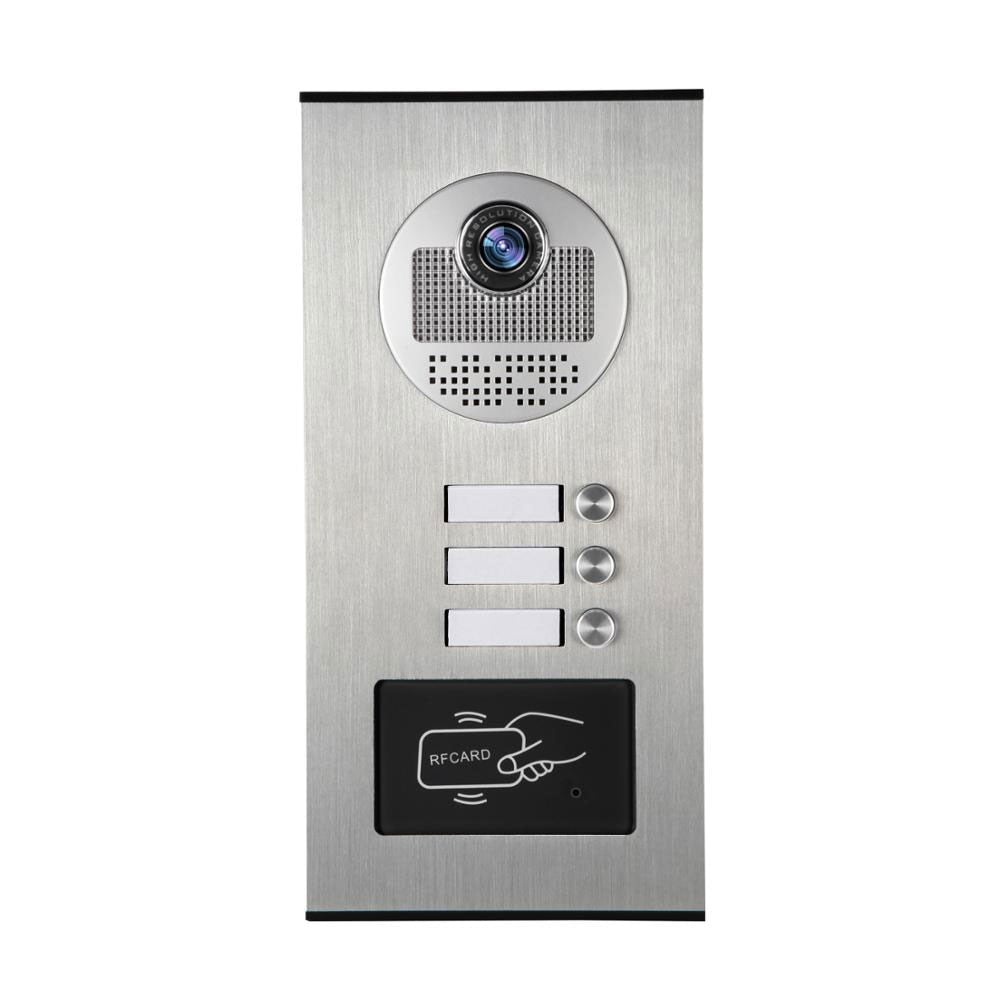

Outdoor camera:

Camera resolution: 700Lines.

Camera: 1/3 Color CMOS Camera.

Built-in microphone and speaker

Power Adapter: From Monitor, DC15V.

Viewing angle: (U/D/L/R, degree): 60/35/70/70.

Connection: 4 cored wire (Up to 12 monitors).

Case: Aluminum material, weatherproof.

Dimensions:122(L) x 276(W) x 45(H)mm.

Support RFID CARD.

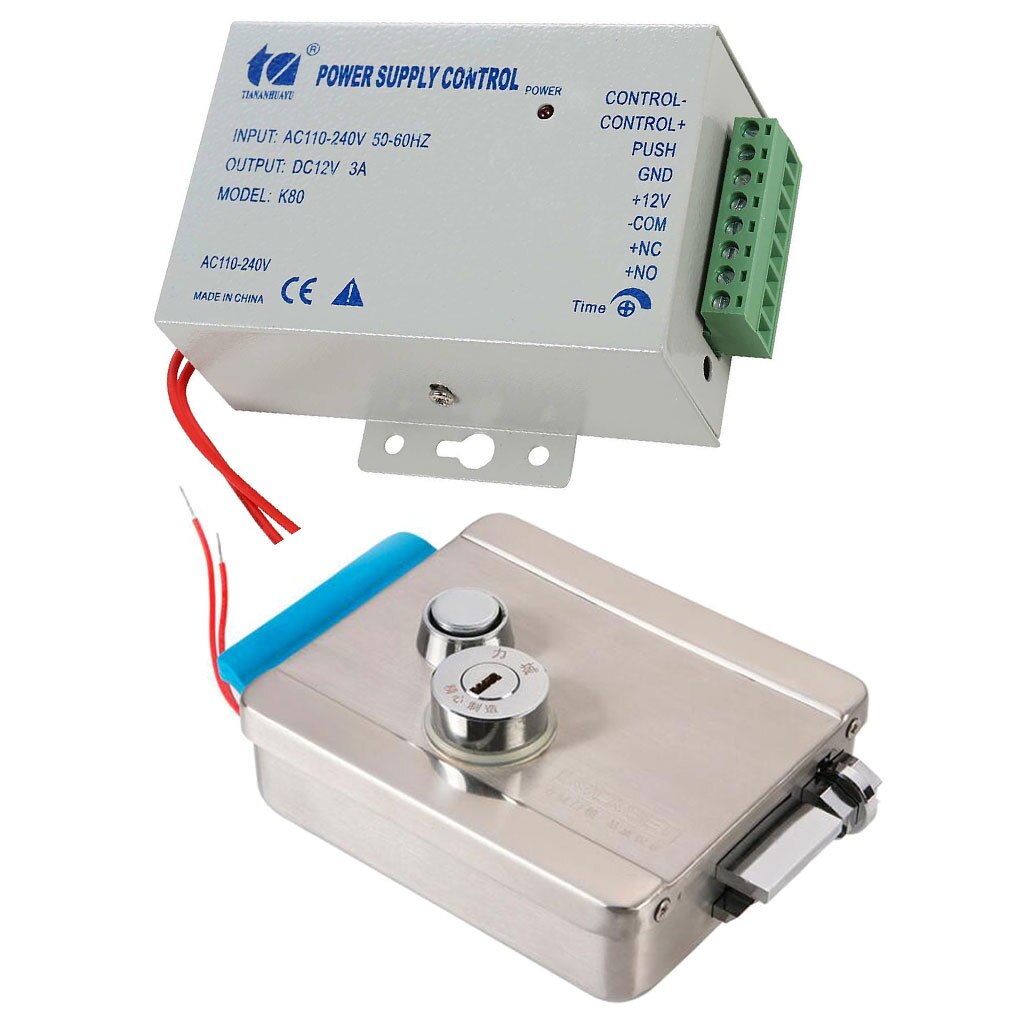

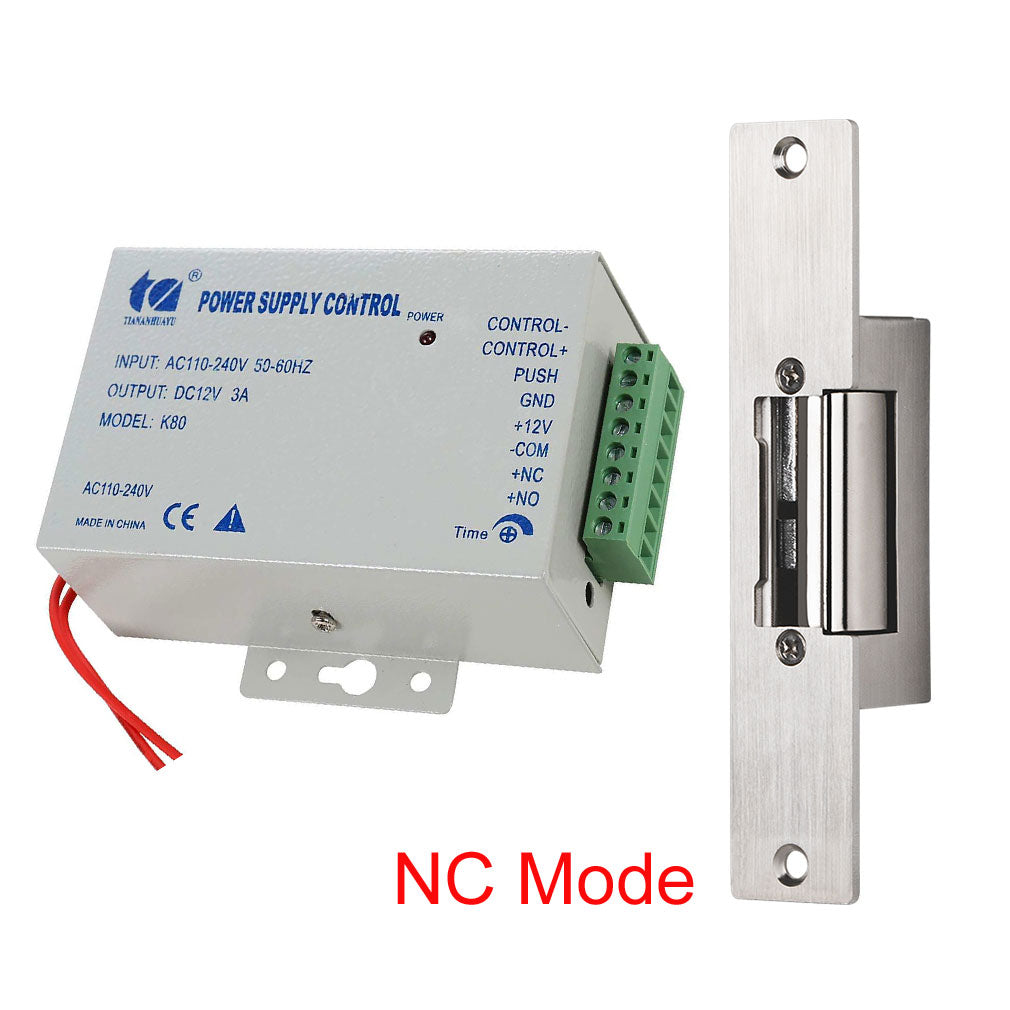

Power Supply Controller

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

It controls electric lock directly.

Can reduce the load of access controller, save wiring to reduce the hidden trouble

Based delay control circuit, lock time can be in 0-15 seconds

Automatic protection function, unexpected situations such as when the power supply

short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

Operative device: E/M Lock, Access Controller, Exit Push Button.

• NC Mode - (Locked while supplied with power) Unlock Safe Mode.

• If you need NO mode, please contact us before bidding.


• Made of Stainless Steel


• Performance Testing: 1000000 times aging test


• Opening Mode: 90 degree swinging door


• Authority Certification: CE & MA Approved

【Multiple scope use】

This lock applies to office buildings,wooden doors,stainless steel doors, fire doors,residential Entrance doors,Intelligent electric cabinet,storage cabinet and anode mechanical lock or ball-type supporting the use of locks

1. 700TVL IR Night Vision. The outdoor camera build-in 5 infrared LED light.

With this function, you can see outside no matter day or night. Keep your home more safer.

2. There are has 3 call button on the camera, each one can connect to one monitor independently.

3. Support Two-way radio function

When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off.

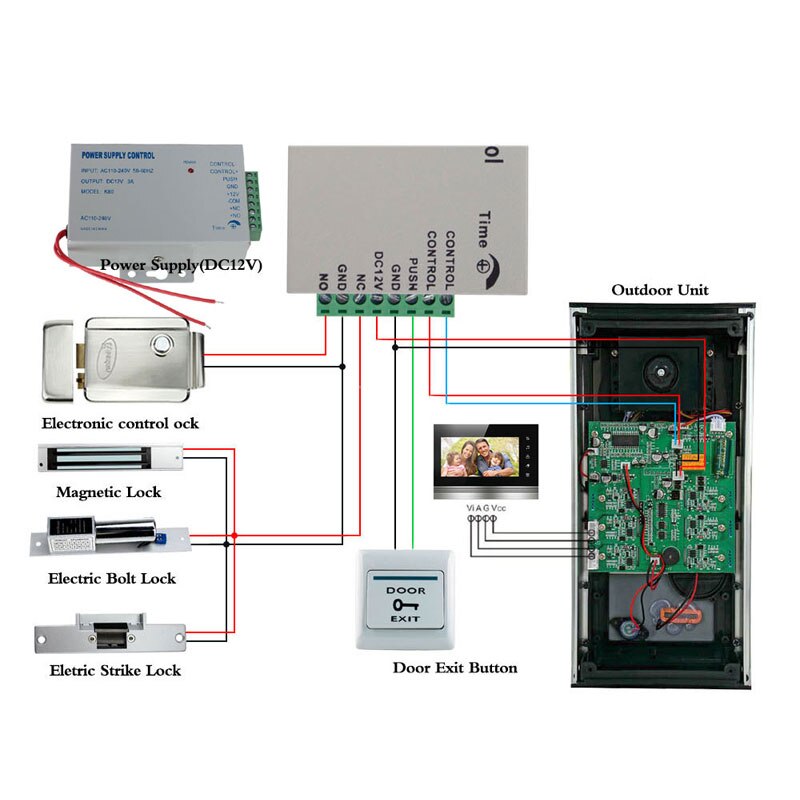

4. Can work with DC12V electric lock. Open the door with the unlock button on indoor monitor

Working with the electric lock, make your home more security.( both of the indoor monitor and locks not including in the package, if you want them, please contact us)

5. The ourdoor camera build-in a RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.

Product Specification:

• Function: video intercom, Night vision, HD camera, RFID unlocking
• Camera Resolution: 700TVL
• Night Vision: Up to 2 meters
• Working Temperature: -35 °C ~ +55 °C
• View angle: 85° to 90°
• User Capacity: 500 user cards
• Most long-distance: 100 meters
• Installation: Embedded mounted
• Material: ABS Plastic, Aluminum wire drawing
• Wire Style: 4 Wire system
• We have the camera with 2 / 3 / 4 / 6 / 8 buttons too.
• 2-6 key dimension: 265mm * 128mm * 48mm;
mounting dimension: 245mm * 117mm * 35mm
•8 key dimension:331mm*128mm*48mm;
mounting dimension:310mm*117mm*35mm

Cabling standards

Different distance, use different diameter cable, please check the following form to choose corresponding cable.
