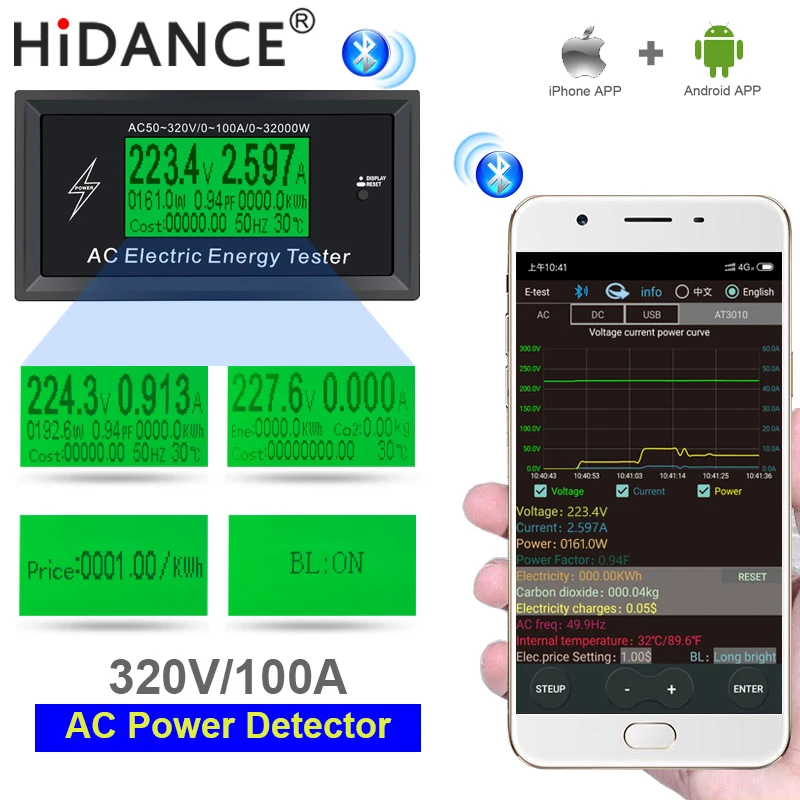

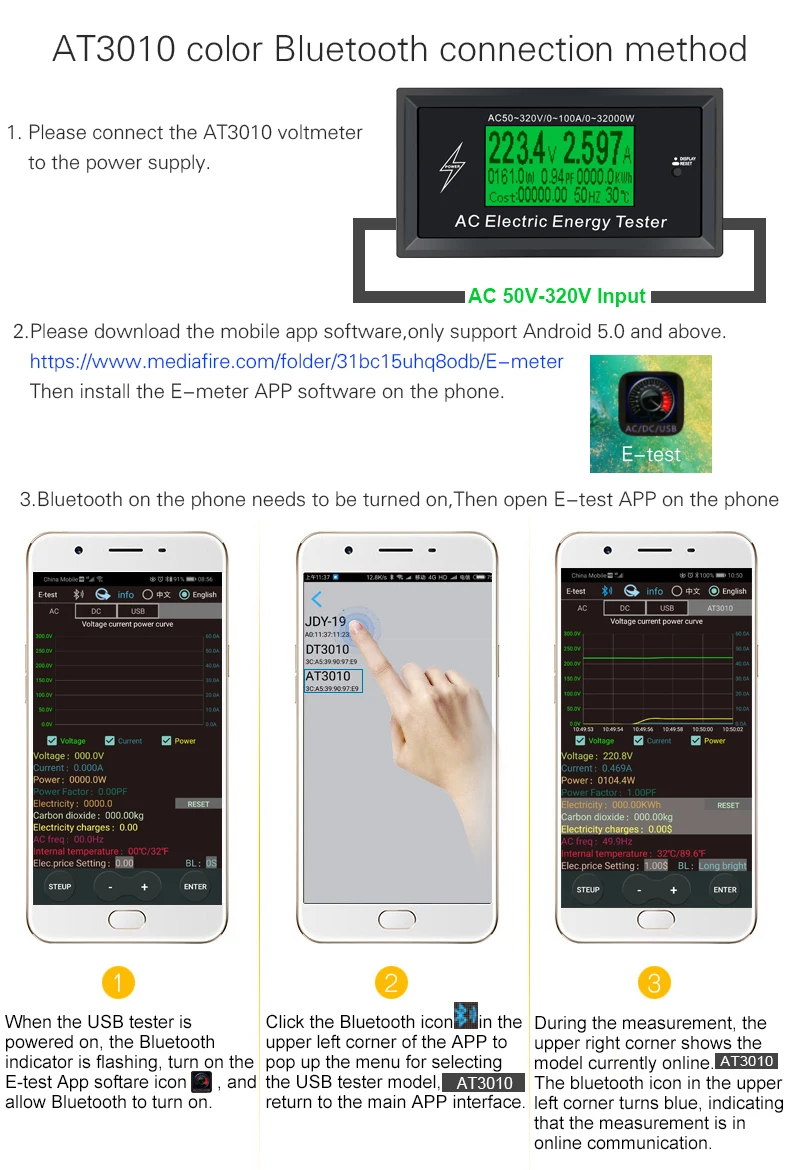

APP download address
https://www.mediafire.com/folder/31bc15uhq8odb/E-meter

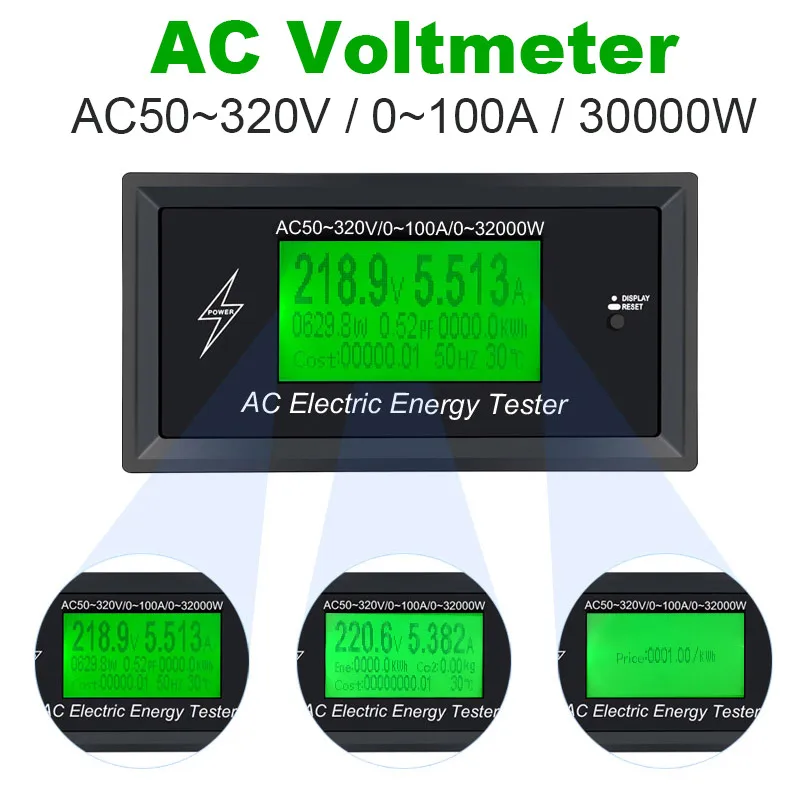

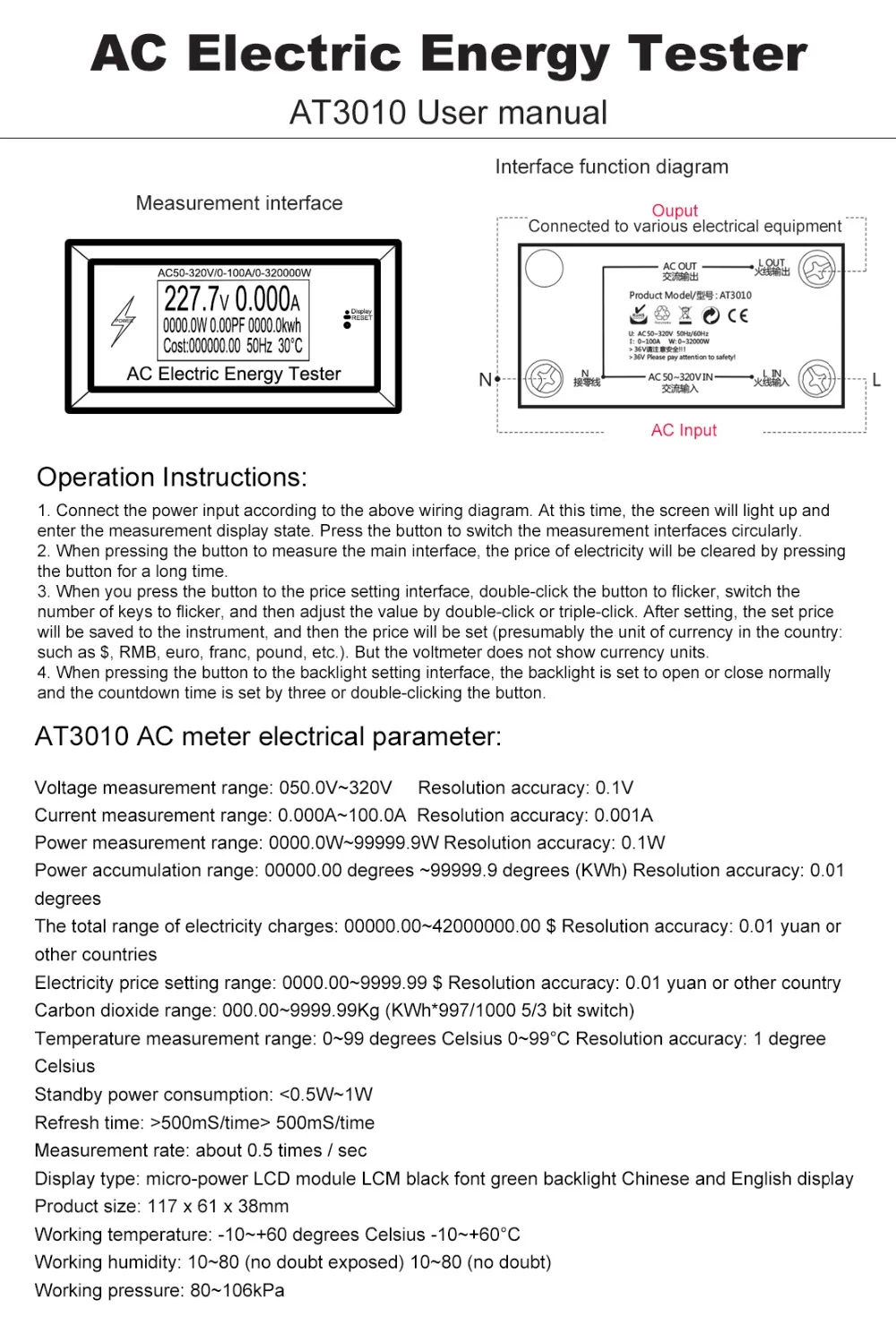

AT3010 AC meter electrical parameter:

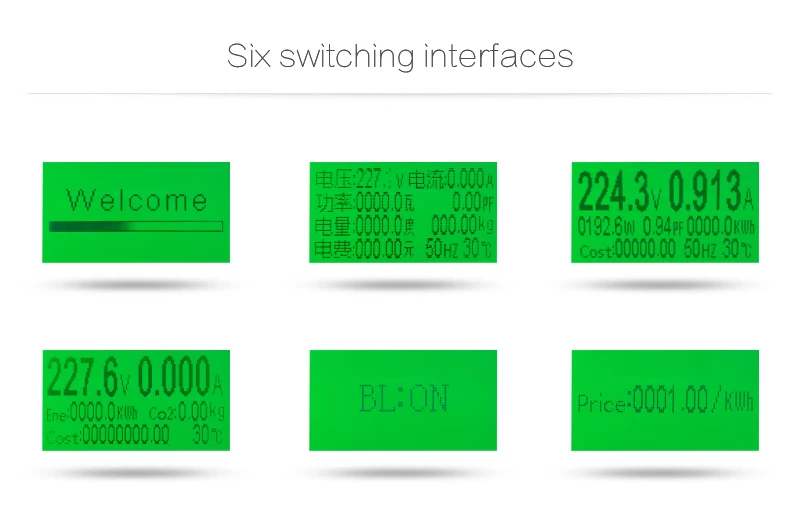

Voltage measurement range: 050.0V~320V Resolution accuracy: 0.1V Current measurement range: 0.000A~100.0A Resolution accuracy: 0.001A Power measurement range: 0000.0W~99999.9W Resolution accuracy: 0.1W Power accumulation range: 00000.00 degrees ~99999.9 degrees (KWh) Resolution accuracy: 0.01 degrees The total range of electricity charges: 00000.00~42000000.00 $ Resolution accuracy: 0.01 yuan or other countries Electricity price setting range: 0000.00~9999.99 $ Resolution accuracy: 0.01 yuan or other country Carbon dioxide range: 000.00~9999.99Kg (KWh*997/1000 5/3 bit switch) Temperature measurement range: 0~99 degrees Celsius 0~99°C Resolution accuracy: 1 degree Celsius Standby power consumption: <0.5W~1W Refresh time: >500mS/time> 500mS/time Measurement rate: about 0.5 times / sec Display type: micro-power LCD module LCM black font green backlight Chinese and English display Product size: 117 x 61 x 38mm Working temperature: -10~+60 degrees Celsius -10~+60°C Working humidity: 10~80 (no doubt exposed) 10~80 (no doubt) Working pressure: 80~106kPa
