Latest Raspberry Pi 4 Model B with 2GB RAM BCM2711 Quad core Cortex-A72 ARM v8 1.5GHz Support 2.4/5.0 GHz WIFI Bluetooth 5.0
Here comes the 4th generation Raspberry Pi model B of popular Raspberry Pi family! Compared to the prior-generation Raspberry Pi 3 Model B+, Pi 4B offers significantly increases in processor speed, multimedia performance, memory, and connectivity. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems, which could let you enjoy smooth and high-quality experience! Raspberry Pi 4B includes a high-performance 64-bit quad-core processor, and features dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers.
Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.
Your new Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you'll find two USB 3 ports, which can transfer data up to ten times faster.

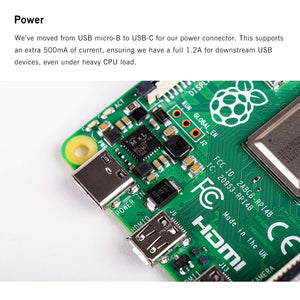

Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC 1.5GHz 1GB, 2GB or 4GB LPDDR4-2400 SDRAM (depending on model) 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE Gigabit Ethernet 2 USB 3.0 ports; 2 USB 2.0 ports. Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards) 2 × micro-HDMI ports (up to 4kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode) OpenGL ES 3.0 graphics Micro-SD card slot for loading operating system and data storage 5V DC via USB-C connector (minimum 3A*) 5V DC via GPIO header (minimum 3A*) Power over Ethernet (PoE) enabled (requires separate PoE HAT) Operating temperature: 0 – 50 degrees C ambient
Raspberry Pi 4B Tutorial: //projects.raspberrypi.org/en/projects/raspberry-pi-setting-up Raspberry Pi 4B Product Brief: //static.raspberrypi.org/files/product-briefs/Raspberry-Pi-4-Product-Brief.pdf Raspberry Pi 4B Schematics: https://www.raspberrypi.org/documentation/hardware/raspberrypi/schematics/rpi_SCH_4b_4p0_reduced.pdf Raspberry Pi 4B Mechanical Drawing: https://www.raspberrypi.org/documentation/hardware/raspberrypi/mechanical/rpi_MECH_4b_4p0.pdf
Pi 4B vs Pi 3B+
